Smart Control for Color Temperature, Brightness and Connected Lighting Systems
ARTCILUX S1361M Matter Smart Lighting Controller is now available.
As cabinet lighting continues to evolve beyond simple on/off control, tunable white lighting requires more flexible and intelligent control solutions.
Designed for furniture and cabinet lighting applications, the S1361M combines wireless control, tunable white adjustment, brightness control, and multi-device management in one compact controller.
Based on Matter smart connectivity, the S1361M works with major smart home ecosystems. Together with the eWeLink APP and compatible third-generation smart power supplies, it provides convenient control for compatible LED lighting systems.
Matter Smart Connectivity for Multiple Ecosystems
The S1361M adopts Matter smart connectivity technology, allowing tunable white lighting systems to connect with major smart home platforms.
It supports:
Apple HomePod — Connect lighting with the Apple Home ecosystem and control through Siri.
Google Home — Manage lighting through Google Assistant.
Amazon Echo / Alexa — Control lighting functions including on/off, brightness, and color temperature.
Samsung SmartThings — Connect lighting with other compatible smart devices.
For users and system integrators, the S1361M provides a flexible solution for integrating cabinet lighting into different smart environments.
Tunable White, Dimming and Remote Control
Through the eWeLink APP, users can manage compatible LED lighting directly from a smartphone.
Tunable White Adjustment
Adjust the color temperature of tunable white LED strips, switching between warmer and cooler lighting according to different applications.
Stepless Brightness Dimming
Fine-tune brightness from subtle ambient lighting to full illumination.
Remote Control and Status Check
Control lighting remotely and check current color temperature, brightness, and switch status through the APP.
Group Control and Device Sharing
The S1361M supports multi-device management through the eWeLink APP.
Multi-Device Group Control
Multiple controllers can be organized into groups and controlled together.
This function is suitable for applications such as display walls, multiple cabinet lighting installations, and other projects requiring synchronized lighting control.
Device Sharing
Configured devices can be shared with other eWeLink accounts or WeChat contacts, allowing multiple users to access the lighting system without repeating the initial setup process.

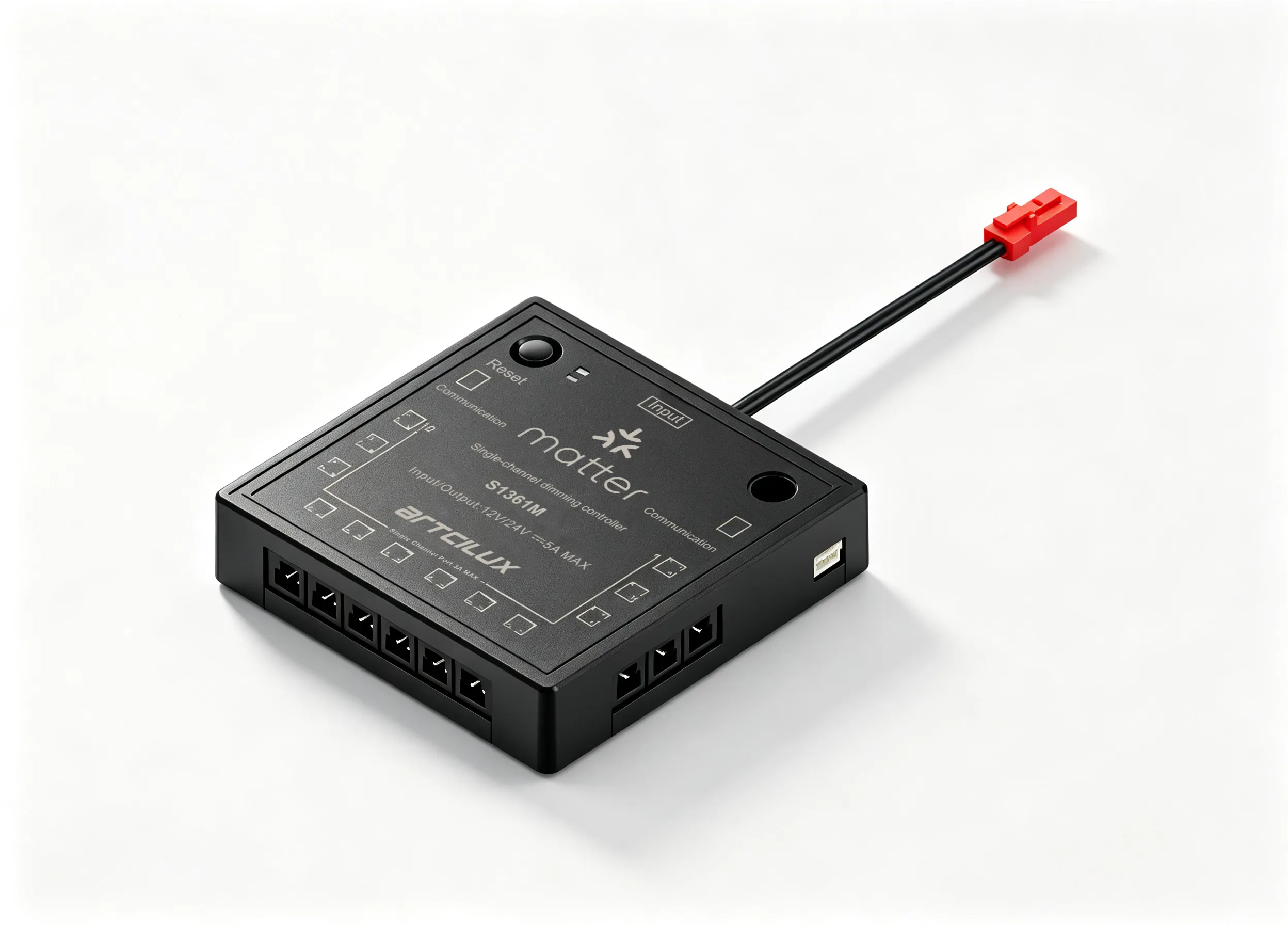

12-Channel Output for Flexible Installation
Designed for professional lighting integration, the S1361M provides 12 CW output interfaces with a parallel connection design.
The black DuPont 2541 female terminals connect with compatible tunable white LED strips.
The power input uses a red DuPont 2541 male terminal and is designed to work with compatible third-generation smart power supplies.
Installation Notes
Ensure the LED lighting voltage matches the power supply output voltage.
Use the controller with compatible tunable white lighting.
Avoid enclosing the controller with metal materials to maintain stable wireless communication.

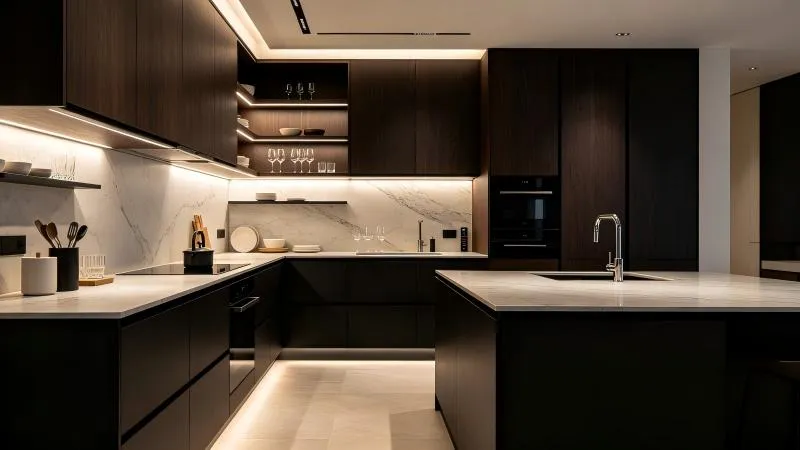

Designed for Tunable White Furniture Lighting Applications

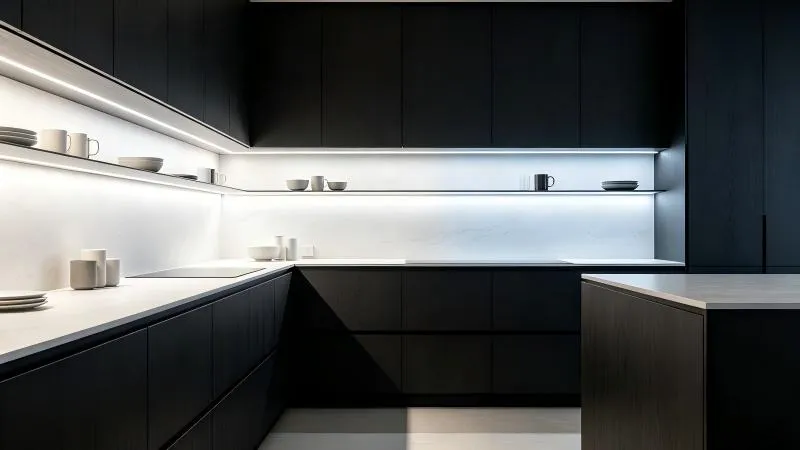

The S1361M is designed for cabinet and furniture lighting applications using tunable white LED strips.
Typical applications include:
Kitchen Cabinets
Cooler white light supports daily tasks, while warmer light creates a more comfortable atmosphere.
Wardrobes
Warm lighting provides a softer experience for everyday use.
Wine Cabinets and Display Cabinets
Adjust lighting according to different display requirements and create flexible presentation effects.
With one controller, tunable white LED lighting can achieve smarter and more flexible control.
S1361M Key Specifications
| Item | Specification |
|---|
| Model | S1361M |
| Product Type | Matter Smart Lighting Controller |
| Application | Tunable White Cabinet Lighting |
| Communication Protocol | Matter Smart Connectivity |
| Smart Ecosystems | Apple HomePod / Google Home / Amazon Echo & Alexa / Samsung SmartThings |
| Control Functions | Color temperature, brightness, on/off and status check |
| Output Interface | 12 CW interfaces, DuPont 2541, parallel design |
| Power Input | Red DuPont 2541 terminal |
| Networking Functions | Multi-device group control and device sharing |
| Pairing Method | Switch power on/off 5 consecutive times to enter pairing mode |
From Lighting Up to Smarter Lighting
With Matter connectivity, tunable white adjustment, brightness control, and group management, the ARTCILUX S1361M helps furniture lighting systems move beyond basic illumination.
Designed for modern cabinet and interior lighting applications, the S1361M provides a smarter and more flexible way to manage tunable white LED lighting.
S1361M is now available. Contact ARTCILUX to learn more about the product and partnership opportunities.
