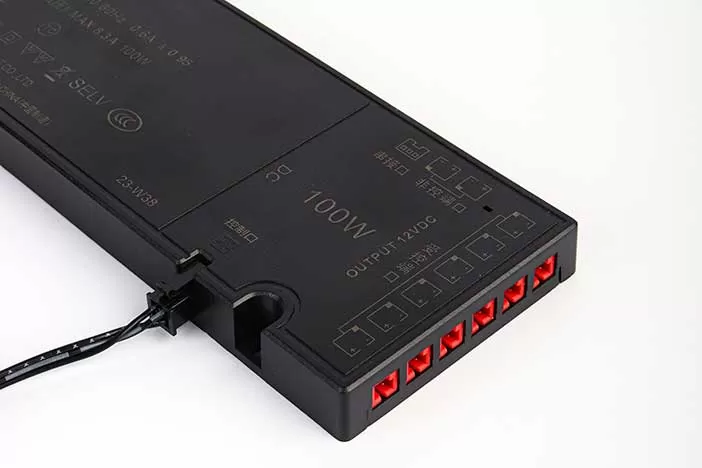

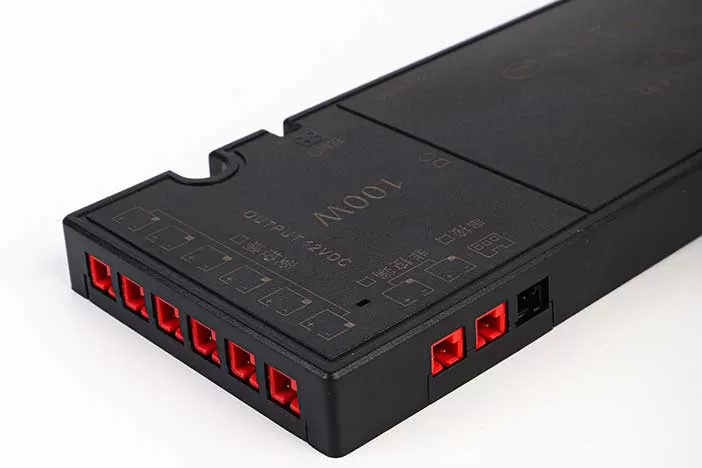

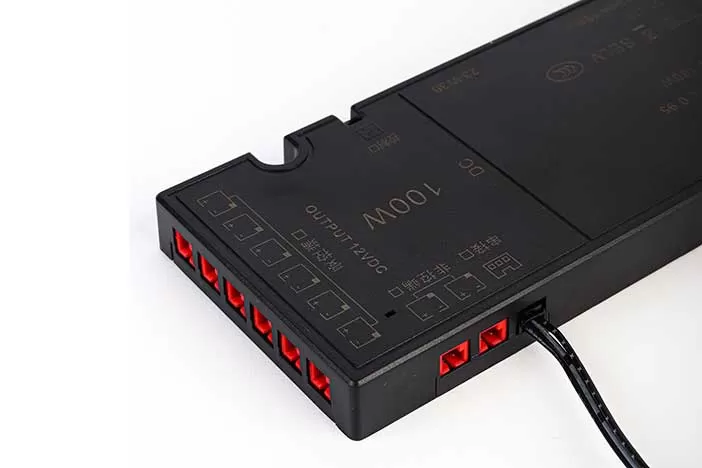

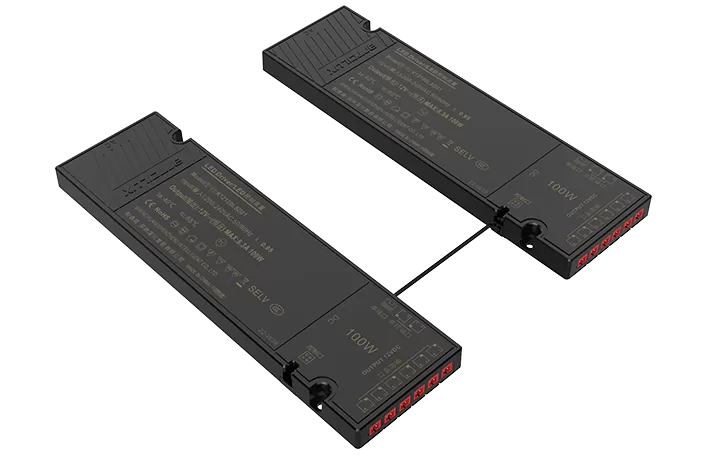

ARTCILUX LSD01 Intelligent Ultra-Thin Power Supply

Driver power supply, compliant with GB19510.14 safety standards;15mm high-power ultra-thin design, first in the industry; Made from ROHS-compliant materials, housing fire rating 94-VO; Supports external intelligent dimming controllers (S1310D, S1310); Multiple safety features: short-circuit protection, overload protection,over-temperature protection, reverse polarity protection; Single-port gold-plated pin technology to meet high current requirements for divided control.

Parameter of LSD01 Intelligent Ultra-Thin Power Supply
Our Products

Parameter of LSD01 Intelligent Ultra-Thin Power Supply

Model K1224LSD01 K12/2465LSD01 K12100LSD01 K24120LSD01
Output Power (W) 24 65 100 120
Input Voltage 200-240V 200-240V 200-240V 200-240V
Output Voltage DC12V DC12/24V DC12V DC24V
Output Current 2A 5.4/2.7 A 8.3 A 5 A
Power factor 0.95 0.95 0.95 0.95
Protection Rating IP20 IP20 IP20 IP20
Number of Output Port 6 Fixture Ports, 1 Switch Port 6 Fixture Ports, 1 Switch Port 6+3 Fixture Ports, 1 Switch Port 6+3 Fixture Ports, 1 Switch Port
Color Black Black Black Black
Size (LxWxH mm) 120×50×15 190×70×15 255 x 75 x 15 255×75×15
Standard Configuration 1 Driver and Installation Accessories 1 Driver and Installation Accessories 1 Driver and Installation Accessories 1 Driver and Installation Accessories
