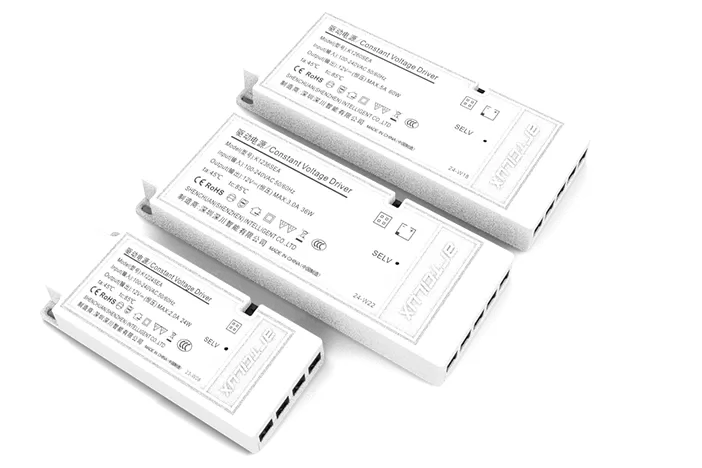

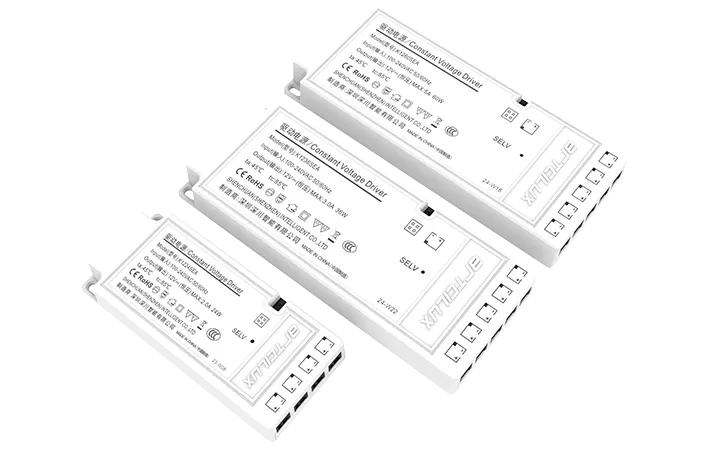

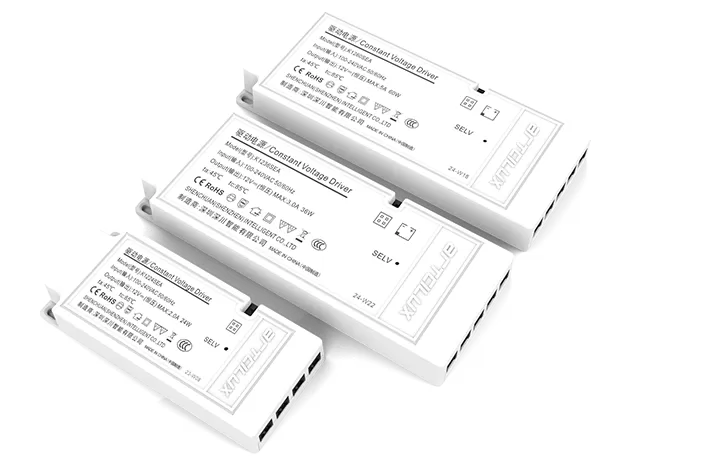

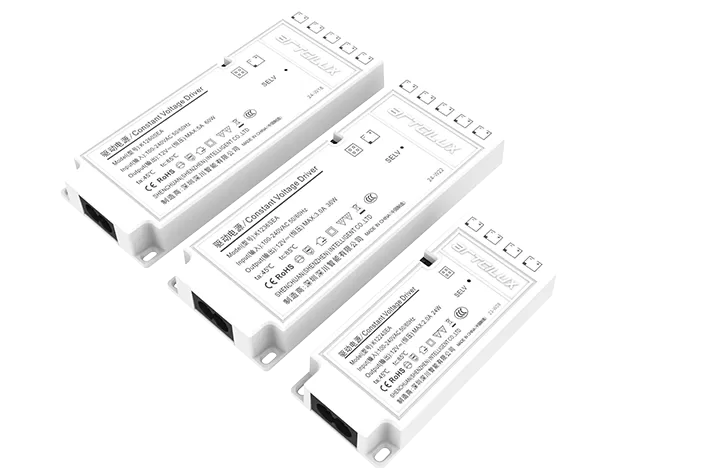

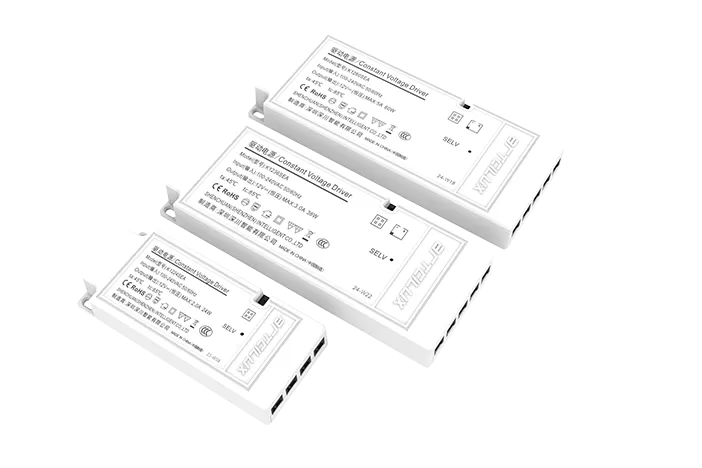

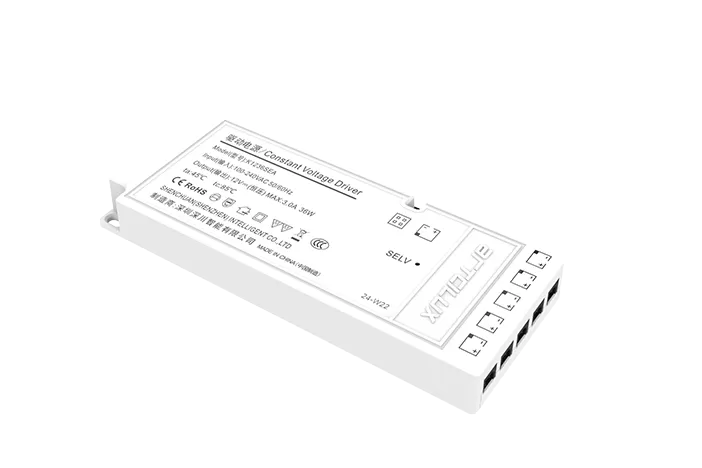

ARTCILUX SEA Intelligent Ultra-Thin Power Supply

Power supply features over-voltage, overload, and over-temperature protection, certified for safety; UItra-thin power adapter designed specifically for furniture lighting, with a maximum thickness of only 16.5mm; Equipped with a 5-foot power plug cable that meets different plug type demands according to different countries and regions; Built-in PWM control port,allowing selection of different control modules for light control.

Parameter of SEA Intelligent Ultra-Thin Power Supply
Our Products

Parameter of SEA Intelligent Ultra-Thin Power Supply

Model K12/2424SEA K12/2436SEA K12/2460SEA
Output Power (W) 24 36 60
Input Voltage 100-240V 100-240V 100-240V
Output Voltage DC12/24V DC12/24V DC12/24V
Output Current 2/1 A 3/1.5 A 5/2.5 A
Power factor 0.5 0.5 0.5
Protection Rating IP20 IP20 IP20
Number of Output Port 4 Fixture Ports, 1 Switch Port 6 Fixture Ports, 1 Switch Port 6 Fixture Ports, 1 Switch Port
Color White White White
Size (LxWxH mm) 101x44.5x15.5 142x56.5x16.5 142x56.5x16.5
Standard Configuration 1 Driver and Installation Accessories 1 Driver and Installation Accessories 1 Driver and Installation Accessories
