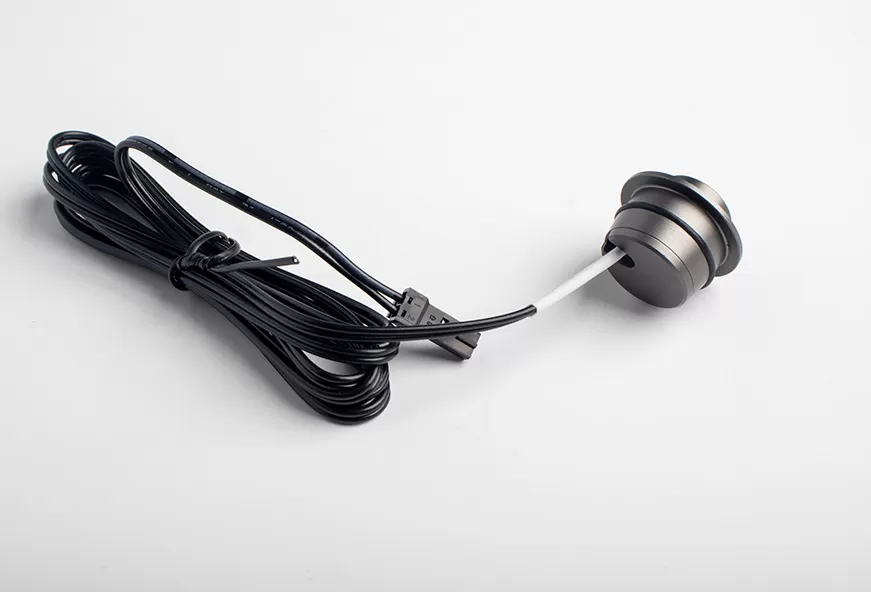

Optical Customization: Custom lenses for specific beam patterns.
Housing Finishes: Matching the spotlight color to the furniture hardware (e.g., Rose Gold, Antique Bronze).
Dimming Systems: Support for DALI, 0-10V, TRIAC, or smart app control.
Plug-and-Play Kits: Pre-wired sets with hubs and drivers for easy retail sale.

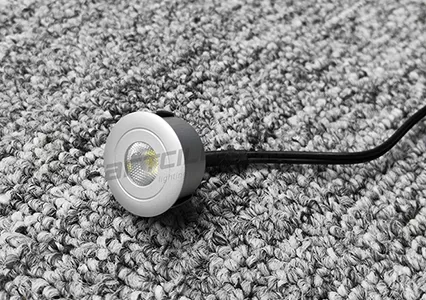

A1311A needs a 19 mm cutout. A1127 has a 7.8 mm-thick body beneath the panel. These two installation approaches affect the drilling, visible profile and cable route, so check the furniture drawing before choosing a spotlight.

19 mm cutout / 12V / 0.7W
Use the 19 mm cutout dimension when planning the panel machining. Also confirm the recess depth and space for the cable; the hole diameter alone does not establish whether the light will fit a thin shelf.
View A1311A specifications
7.8 mm body / 12V / 1.7W
A1127 uses magnetic installation and a milky diffuser for soft surface emission. Allow for the lamp body below the panel, its mounting assembly and the cable exit when checking shelf clearance.
View A1127 specificationsPlan the fixing and the wiring separately. Surface mounting avoids a recess for the lamp body, but the cable still needs a route. Magnetic mounting also requires the specified mounting base or suitable attachment surface; a magnet does not attach directly to a wooden panel.
The models below are listed at 12V, with Ra above 90 and 3000K, 4000K or 6000K options. Their installation and optical features differ. Use those differences to shortlist a model, then confirm its dimensions and order configuration.
| Model | Installation | Voltage / Power | Difference to Check |
|---|---|---|---|
| A1116 | Recessed | 12V / 1W | Aluminum body and soft surface emission. Constant-on, PIR and hand-sweep options are listed; confirm the version required. |
| A1311A | Recessed | 12V / 0.7W | Compact fitting with a 19 mm cutout. Confirm recess depth and cable clearance for the panel. |
| A1122 | Surface-mounted / magnetic | 12V / 1.5W | PMMA light guide for soft illumination. Separate lamp and cable connection helps with replacement and maintenance. |
| A1127 | Surface-mounted / magnetic | 12V / 1.7W | 7.8 mm-thick aluminum body with a milky diffuser. Check clearance below the shelf and the mounting assembly. |
| A1117 | Recessed | 12V / 1W | Listed 0-30 degree angle adjustment and 15-60 degree beam adjustment for directing light toward a display item. |
| A1118 | Recessed | 12V / 1W | Listed 15-60 degree focusing range. Confirm the required beam setting when reviewing the display layout. |
| A112C | Recessed / surface-mounted | 12V / 2.5W | Listed for both mounting approaches. Specify the required installation and confirm the matching fixing components. |
| A112D | Recessed / surface-mounted | 12V / 1.7W | Uniform surface emission and aluminum construction. Confirm the selected mounting arrangement and dimensions. |
Scroll horizontally on smaller screens. Wattage is the electrical load, so compare light output and beam distribution before deciding how many lamps a cabinet needs.
Highlighting one display object and lighting the contents of a cabinet call for different light distributions. The range includes adjustable beam models as well as lamps designed to produce a softer surface glow.
A1117 lists angle adjustment from 0 to 30 degrees and beam adjustment from 15 to 60 degrees. A1118 lists a 15-60 degree focusing range. Review the object's position, distance below the light and reflections when setting the beam.
A1122 uses a PMMA light guide, while A1127 uses a milky diffuser. Both are described as soft surface-emitting lights. Check the installed effect with the actual shelf finish and contents to judge whether the coverage is sufficient.
Separate cabinet bays: Check each compartment individually. A shelf or divider can block light from the next bay, even when the overall cabinet is small.
Glass and polished surfaces: Test from the normal viewing position. Moving or angling the fitting may help keep a bright reflection away from the displayed object.
Long shelves or work surfaces: Compare the pools of light from round fittings with a cabinet strip light when the project calls for continuous illumination along the length.
3000K
Warm appearance
Compare with warm room lighting, timber finishes and residential furniture.
4000K
Neutral appearance
Compare with mixed materials and displays where a neutral white appearance is preferred.
6000K
Cool appearance
Compare with cooler surrounding lighting and the actual merchandise or cabinet contents.
Choose a consistent CCT across one cabinet or connected display. The listed CCT options do not, by themselves, mean that a lamp can change color temperature through a controller. Confirm a dedicated tunable-white configuration if that function is required.
For an OEM furniture project, select the lamp and mounting arrangement together with the power supply, cable connections and control function. This helps establish what the furniture factory needs to machine, install and test before shipment.
Eight A1127 lamps have a listed lamp load of 8 x 1.7W = 13.6W. Driver selection must also account for any other connected loads, rated operating conditions and the manufacturer's required margin. Confirm the output voltage, connector arrangement and load limits of the driver, distribution hub and controller.
Compare cabinet LED driver and power supply optionsA1116 lists constant-on, PIR and hand-sweep options. Confirm the required version when ordering. For an external door sensor or dimmer, match the voltage, wiring and load capacity to the selected lamp circuit. DALI, 0-10V, TRIAC and smart-control requests require a compatible lamp, driver and control configuration, with feasibility confirmed for the project.
Review cabinet sensor switch optionsInclude the furniture drawing, panel thickness, lamps per cabinet, required CCT and order quantity. Add any requested housing finish, cable length, connector, fixing components or packaging requirements. ARTCILUX can review these details against the selected model; availability and minimum order requirements depend on the configuration.
Its listed cutout diameter is 19 mm, but shelf compatibility also depends on recess depth, the mounting structure and cable clearance. Send the panel thickness and section drawing so the complete installation can be checked before drilling.
Both list magnetic installation, which needs the appropriate mounting base or suitable attachment surface. Confirm the supplied fixing parts, how the base attaches to the furniture and where the cable exits.
The compared models are listed at 12V. Match the driver output to the selected lamps, add their rated loads and check the driver, hub and controller capacities. A 12V lamp should not be connected directly to mains power or to a 24V output.
Compatibility depends on the selected spotlight, driver and control components. A low-voltage lamp listing alone does not establish support for a particular dimming protocol. Specify the required system so the full configuration can be confirmed.
The product tables list these color temperatures as available options. That does not automatically establish tunable-white operation for one lamp. Confirm a suitable lamp and controller combination if adjustable CCT is part of the project.
Use the intended panel material and thickness. Check the fitting, cable access, light coverage, reflections, CCT and control response with the actual cabinet contents. For adjustable models, include the required aiming or focusing setting in the sample review.
Send the Cabinet Drawing for Model Selection
Share the panel thickness, installation preference, lamps per cabinet, CCT, control function and quantity. ARTCILUX can review the spotlight and its matching components together for your furniture project.
