Lighting control should be intuitive, precise, and easy to adapt to different moments.
The ARTCILUX S2102 Wireless Knob Remote Control is designed for indoor cabinet and furniture lighting applications where convenient dimming and color temperature adjustment are required. Combining a rotary control ring, dedicated buttons, 2.4GHz wireless RF technology, and Type-C charging, the S2102 provides a practical way to adjust compatible lighting systems wirelessly.
With a compact 75 × 45 × 15 mm design and a wireless control distance of up to 10 meters, the S2102 is suitable for a variety of cabinet and furniture lighting applications.
_20260904113036.webp "S2102 Wireless Knob Remote Control for Cabinet Lighting).png")
Smooth Dimming and Color Temperature Adjustment
The S2102 features a rotary ring for intuitive lighting adjustment.
In dimming mode, rotating the ring provides stepless brightness adjustment. After switching to color temperature mode, the same rotary ring can be used to adjust the color temperature.
Unlike step-by-step adjustment, rotary control allows users to make smoother and more precise changes according to their lighting needs.
For everyday furniture lighting, this makes it easier to create different lighting conditions without repeatedly pressing buttons to move between fixed levels.
[Image 1 – S2102 Product Hero Image]
Rotary Control with Convenient Button Operation
The S2102 combines rotary adjustment with dedicated buttons for everyday operation.
The remote includes a center button, a mode button, and three shortcut buttons. A built-in indicator light provides flashing feedback during operation.
The mode button is used to switch between dimming and color temperature adjustment. The three shortcut buttons provide quick adjustments for color temperature and brightness.
This combination allows users to use the rotary ring for more detailed adjustment while using the buttons for quick changes.
[Image 2 – Product Functions & Dimensions]
2.4GHz Wireless RF Control
The S2102 uses 2.4GHz wireless RF technology and provides a remote control distance of up to 10 meters.
The remote control needs to be used with an ARTCILUX smart lighting receiver and controller. After successful pairing, the S2102 can be used to control the compatible lighting system.
The wireless RF control method provides convenient operation for indoor cabinet and furniture lighting applications without requiring a wired control interface at the point of use.
Simple Pairing and Clear-Pairing Procedures
The S2102 can be paired with the compatible receiver through a simple button sequence.
After the receiver is powered on, the pairing operation needs to be completed within 30 seconds.
To pair the remote, press and hold the Moon button, then press the Sun button. The indicator light flashes twice when pairing is successful.
When the existing pairing needs to be cleared, press and hold the M button and then press the CI button within 30 seconds after the receiver is powered on. The indicator light flashes twice when clearing is successful.
[Image 3 – S2102 Pairing Instructions]
Note: During pairing or clearing, keep the remote and receiver within effective range and avoid metal objects blocking or enclosing the devices.
Type-C Charging for Convenient Daily Use
The S2102 features a low-power chip designed for long standby operation.
The remote can be recharged through its built-in Type-C charging interface, eliminating the need for frequent battery replacement.
The charging indicator shows the charging status clearly:
This rechargeable design provides a convenient solution for regular indoor lighting control.
Compact Design for Cabinet and Furniture Lighting
Measuring 75 × 45 × 15 mm, the S2102 combines a compact body with a rounded shape for comfortable handling.
Its small form factor makes it suitable for indoor environments where users need convenient access to lighting controls, including cabinets, wardrobes, display furniture, and other furniture lighting applications.
For more cabinet lighting options, explore the ARTCILUX Cabinet LED Light range.

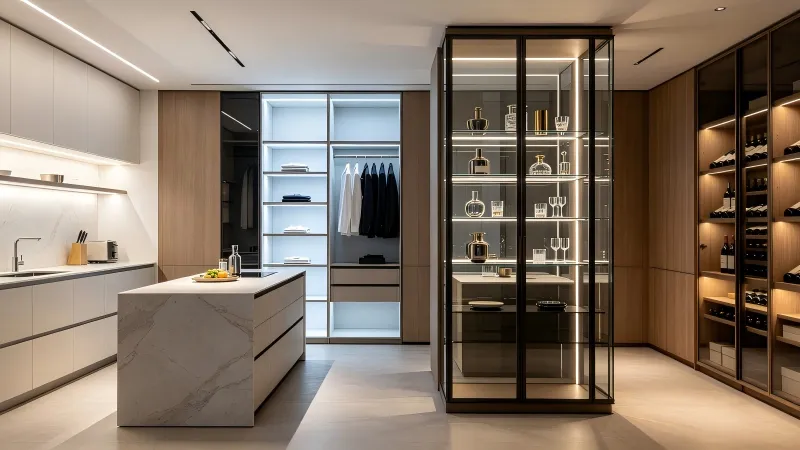

Applications
The S2102 can be used in a variety of indoor cabinet and furniture lighting scenarios.
Kitchen Cabinets
Brightness and color temperature can be adjusted according to different lighting requirements, from brighter working light to warmer lighting in the evening.
Wardrobes and Walk-In Closets
The remote allows users to adjust lighting while selecting clothes or organizing the wardrobe.
Display Cabinets and Jewelry Cabinets
Brightness and color temperature can be adjusted according to different display environments and materials.
Wine Cabinets and Bookcases
Lower brightness and warmer lighting can be selected when a softer lighting atmosphere is preferred.
For alternative control methods in cabinet lighting systems, explore ARTCILUX Cabinet Sensor Switch solutions.
Technical Specifications
| Item | Specification |
|---|
| Model | S2102 |
| Product Name | Wireless Dimming & Color Tuning Remote Control |
| Dimensions | 75 × 45 × 15 mm |
| Operating Voltage | 5V (Type-C Charging) |
| Wireless Frequency | 2.4GHz |
| Control Method | Wireless RF |
| Remote Control Distance | 10 m |
Frequently Asked Questions
What does the S2102 work with?
The S2102 needs to be used with an ARTCILUX smart receiver/control box. Pairing is required before use.
What should I do if the remote cannot control the lighting?
First, check whether the remote has sufficient power and charge it if necessary.
Then check whether metal objects are blocking or enclosing the remote or receiver.
If the problem continues, clear the existing pairing and pair the remote with the receiver again according to the specified procedure.
Can the S2102 be used outdoors?
No. The S2102 is intended for indoor use only. Do not install it in locations where water or liquid may drip onto the product, and keep it away from fire and liquids.
A More Intuitive Way to Control Lighting
The ARTCILUX S2102 combines a rotary control ring, dedicated buttons, 2.4GHz wireless RF technology, and Type-C charging in a compact wireless remote control.
With smooth brightness and color temperature adjustment, wireless control of up to 10 meters, and a rechargeable design, the S2102 provides a convenient control option for indoor cabinet and furniture lighting applications.
Contact ARTCILUX to learn more about the S2102 Wireless Knob Remote Control, request product information, or discuss your lighting requirements.
