Product Details
Place of Origin: Guangdong, China
Brand Name: Artcilux
Certification: EMC CE RoHS
Model Number: A2801A
Payment & Shipping Terms
Minimum Order Quantity: 100 pieces
Price: 8 USD per piece (negotiable)
Packaging Details: Rechargeable LED Light
1 pc/ white box with PE foam
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 100000 Piece/Pieces per Month Rechargeable LED Light
Power: |
7.5W |
Application Area: |
Drawer And Other Decorative Occasions |
Alloy Or Not: |
Is Alloy |
Port: |
Shenzhen |
Design Style: |
Modern |
Sensor: |
No Motion Sensor |
Size: |
1000X19*11.5mm |
Cable Length: |
1500mm |
Luminescence: |
Oblique Reflection Luminescence |
Power: |
7.5W |
Application Area: |
Drawer And Other Decorative Occasions |
Alloy Or Not: |
Is Alloy |
Port: |
Shenzhen |
Design Style: |
Modern |
Sensor: |
No Motion Sensor |
Size: |
1000X19*11.5mm |
Cable Length: |
1500mm |
Luminescence: |
Oblique Reflection Luminescence |
A2801A decoration strip light, 1000(customized)X19*11.5, DC12V, 2835-120LED, 7.5W, 3000/4000/6000K, Ra>90
Product Features
1. the use of high-quality aviation aluminum, surface anodic oxidation treatment, corrosion-resistant strong heat dissipation;
2. directional irradiation, no light spots, soft light effect is not blinding;
3. No need to cut slots, screw-fixed installation;
4. long for the cabinet laminate front and cabinet corners and other positions;
5. Color: silver, black, space gray. The length of the lamps and lanterns can be customized.
| Product | A2801A decoration strip light |
| Specification size | 1000X19*11.5 |
| Working voltage | DC12V |
| LED | 2835-120LED |
| Power | 7.5W |
| Color temper | 3000/4000/6000K |
| CRI | Ra>90 |
| Sensor Switch | No |

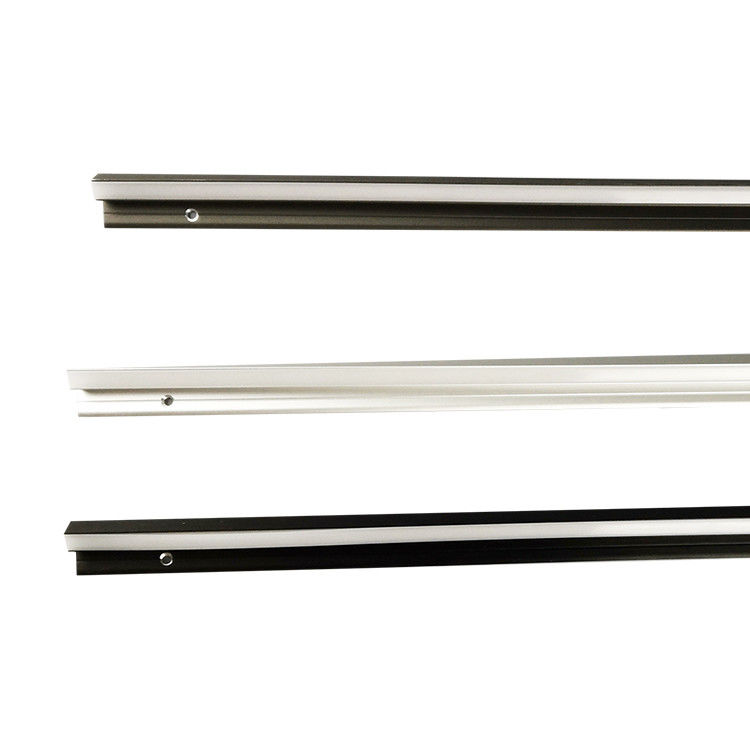

Product physical diagram
Product Installation
1. Refer to the schematic diagram to open the width 2.5 depth 4mm outlet slot on the side of the laminate, the slot needs to avoid the laminate 3-in-1 mounting holes.
2. According to the position of the screw holes of the lamps and lanterns, line up φ2mm positioning holes on the corresponding laminate position, use a screwdriver to fix the lamps and lanterns on the laminate, and install the lamp wires in the laminate lamp slots.
3.Installation effect diagram
Installation tools
Packaging, storage and transportation
The product packaging conforms to the relevant provisions of GB/T 191-2000.
White box + outer box
