DC12-24V Voltage High Sensitivity Human Body Sensor Switch 2.4GHz with CE FCC ROHS Certificates

Name: DC12-24V Voltage High Sensitivity Human Body Sensor Switch 2.4GHz with CE FCC ROHS Certificates
Brand: Shenzhen Shenchuan Intelligent Co., Ltd
SKU: S1316SE
Price: 14 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: Artcilux

Model Number: S1316SE

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: 14

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                CE Human Body Sensor Switch, ROHS Human Body Sensor Switch, 2.4GHz Human Body Sensor Switch


Lighting Solutions Service:	Lighting And Circuitry Design, Project Installation	Warranty(Year):	5-Year
Product Weight（kg）:	0.1	Voltage:	DC12~24V
Certificates:	CE FCC ROHS	Color:	Black

Lighting Solutions Service:	Lighting And Circuitry Design, Project Installation
Warranty(Year):	5-Year
Product Weight（kg）:	0.1
Voltage:	DC12~24V
Certificates:	CE FCC ROHS
Color:	Black

DC12-24V Voltage High Sensitivity Human Body Sensor Switch 2.4GHz with CE FCC ROHS Certificates

I. Product Overview

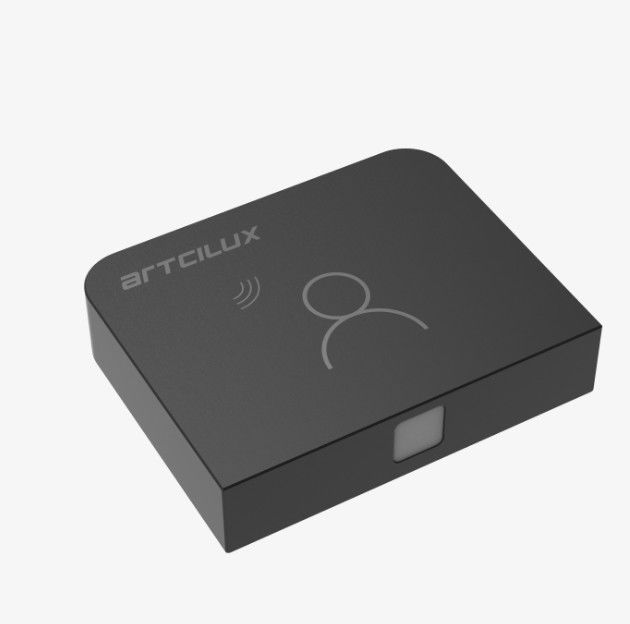

S1316SE wireless human body induction remote control switch adopts 2.4GHz wireless radio frequency control mode, which can be matched with our control box to realize wireless control function of lamps and lanterns. It adopts replaceable CR2450 button battery, which can control the wireless control box at a distance of 10M in the open occasion. The appearance is neat and elegant, light and beautiful; using advanced low-power chip, long standby time; this product has the advantages of environmental protection and energy saving, easy to use, no wiring, etc. It is an excellent solution for furniture LED lighting control.

II. Wireless remote control technical parameters

Ambient temperature	-20℃~50℃	Operating Voltage	3.0~3.3V
Battery type	CR2450	Modulation method	GFSK
Standby power consumption	<0.2mW	Operating power consumption	<60mW
Wireless transmitting frequency	2.4GHz	Remote Control Distance	10M
Human body sensing distance	1-3m	Product Size	504011.5*mm

III. Product dimensional drawing and wood panel processing drawing

DC12-24V Voltage High Sensitivity Human Body Sensor Switch 2.4GHz with CE FCC ROHS Certificates 0
