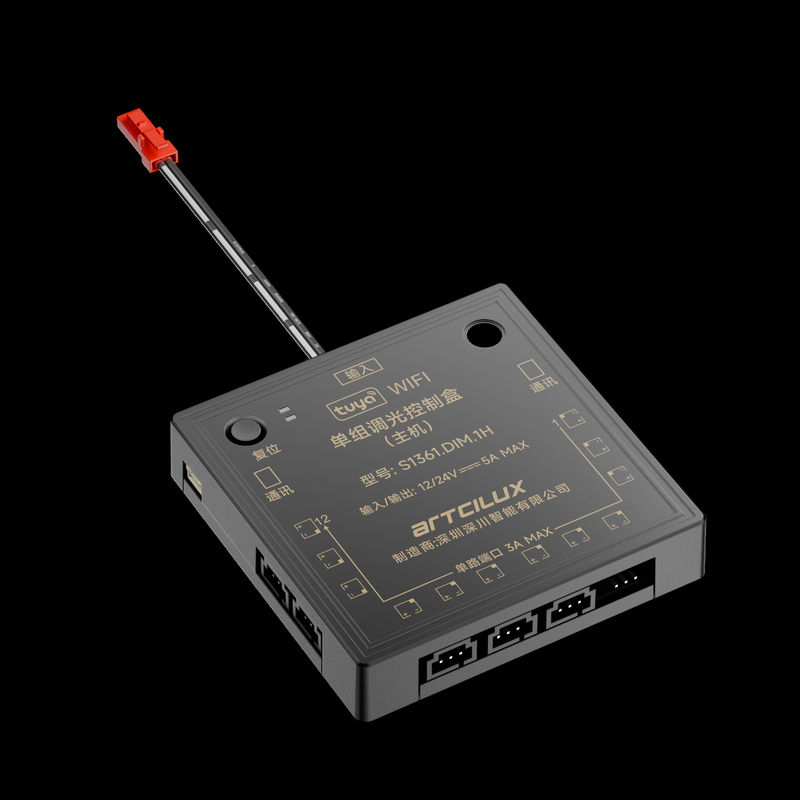

Home Wireless LED Dimming Controller 2.4GHz Surface Mounted For Smart Speakers

(Only the host controller has indicators, and the slave one has no indicator)

①Reset button: Used to put the controller into the set state or reset the controller. Press the button within 1s, and the controller enters the setting state; Press and hold for more than 5S to reset the WIFI module. Long press for more than 10S, the controller restores the factory 2.4GHz Settings, all the remote controls codes are cleared, and the WiFi is reset.

②Blue indicator:(S1361.DIM.2S is without this indicator)Wifi status indicator description

Quick blink (500ms) : The device is waiting for one-key network distribution；

Long Blinking (2S) : The device waits for the AP to be connected to the network；

Steady on: The device is configured and the router is connected；

Off: The device is configured and no router is connected；

③ Red Green Indicator:(S1361.DIM.2S is without this indicator)

Green:Power on within 30 seconds, or short press the reset button within 30 seconds, the green light is steady on, wait for 2.4G network distribution ; After it is turned off and blinks, there is a wireless communication signal;

Red:Fault lights, equipment output overload or short circuit；

④Power input cable: Use the red DuPont 2541 male terminal, can be inserted into our CA03 Aurora power supply

⑤Fixing screw hole: The controller can be fixed to the board using the supplied screw；

⑥Communication port: Connect the host and slave controllers, or connect the external reset button

⑦Output black Dupont 2541 female terminal, connected to black Dupont 2541 male terminal monochrome temperature strips.

3.1), the remote control and a single set of light alignment: short press the reset button, the device enters the setting state, the host and slave of S1361 will be connected to the light from the first group, the second group, the third group, the fourth group, the fifth group, the full light cycle change, then press the matching key of the remote control, the corresponding light will be off three times, that is, the code pairing is successful;

3.2), remote control and multiple groups of light alignment: for example, remote control and the second and third groups of alignment, first follow the previous step and the second group alignment will be successful, then short press the reset button to make the third group of lights ON, and then use the remote control to turn on the second group of lights, at this time the second and third groups of lights are lit, press the remote control matching key, the second and third groups of lights are off three times, then the remote control is matched with the second and third groups of lights;

3.3), remote control code clearing: the control box is in the setting state, while pressing the remote control matching and clearing keys, the green light flashes, that is, the code clearing is successful.
