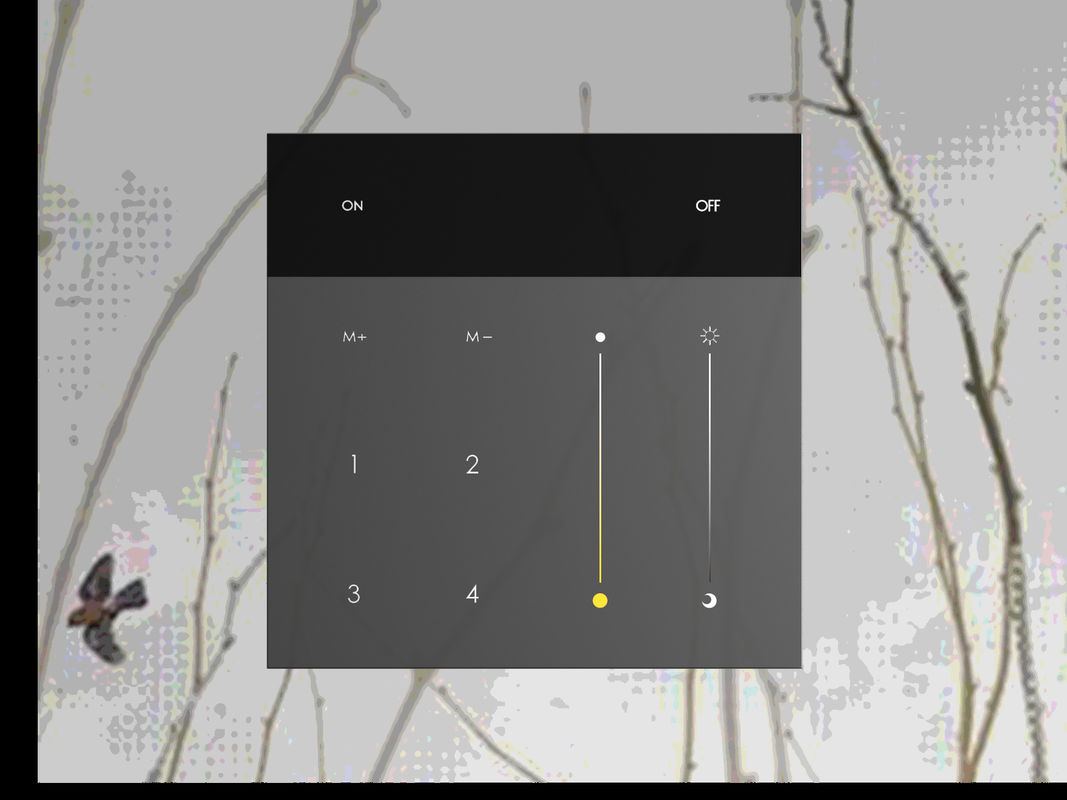

Wireless Touch Panel Sensor 2.4GHz Remote Control LED Remote Dimmer

① When the ON button is used as the code match button, the code matching steps are as follows

1) First of all, connect the intelligent receiver to the lamp, then connect the intelligent receiver to the power supply, and then power on the power supply;

2) Press the ON button, the pressing duration is longer than 1S, if the lamp will blink 3 times, then the code match is successful, the panel controller can control the controller;

3) If the matching fails, repeat Step 1 and Step 2；

② When the ON button is used as the code study button: If you need multiple remote controls to control an intelligent receiver at the same time, the remote controls need to learn their code values between each other, remote control A can already control A receiver through the code, remote control B and remote control A control the receiver at the same time, remote control B only need to learn the code value of remote control A, the steps are as follows:

1) Press the ON button of remote control B for more than 10S. At this time, remote control B enters the code learning mode, remote control B will accordingly control a group and the blue light of remote control B should be steady 30S. (Remote control B can exit the code learning mode by pressing the clear code key.)；

2) Then press the code matching key of remote control A for more than 1S. If the blue light of the corresponding group of remote control B blinks three times, remote control B learns the code value code of remote control A successfully, and remote control B can control the receiver；

3) If remote control B fails to learn the code, repeat steps 1 to 2 until it succeeds；

③ When the OFF button works as a code clear key, the code clearing procedure is as follows:

1) When the OFF button is pressed for more than 10S, the blue light corresponding to the remote control group blinks 3 times, the remote control code value changes, and the clear code becomes work；

2) After the code clearing is successful, the remote control no longer controls the receiver；

3) If the code clearing fails, repeat steps 1 to 2 until it succeeds.

④ When the OFF works as an internet transfer key, the procedure is as follows:

1) First to match the code to make sure that the panel can control the receiver with wireless module;

2) When the OFF button is pressed for more than 10S, the lamp of the receiver with wireless module flashes for 3 times;

3) If the network transfer is successful, the receiver can be reconfigured.
