Separate 1pc Connector to Sensor Switch Control
Ultra Thin-Only 22mm thickness, Super suitable for Led Cabinet lighting use.
Product Details
Place of Origin: China
Brand Name: ARTCILUX
Certification: CE, EMC, LVD, ROHS, ETL, CCC
Model Number: K1260CTS
Payment & Shipping Terms
Minimum Order Quantity: 100 pieces
Price: USD10.5-23.5 /piece (negotiable)
Warranty(Year): |
5-Year |
Lighting Solutions Service: |
Project Installation |
Product Weight（kg）: |
0.8 |
Output Power: |
15 - 60W |
Output Type: |
Constant Voltage |
Input Voltage: |
AC100-240V, AC100-265V |
Output Frequency: |
50/60Hz |
Output Current: |
5A |
Product Name: |
Led Switch Power Supply 60W Led Driver 12V 5A Constant Voltage |
Specifications: |
K1260CTS 60W DC12V 5A PF:0.9 |
Certificate: |
CCC/TUV-CE/CB |
Input Current: |
AC220V/0.5A |
Input Power: |
68W |
Power Factor: |
>0.9 |
Output Voltage: |
12V |
Output Power: |
60W |
Warranty(Year): |
5-Year |
Lighting Solutions Service: |
Project Installation |
Product Weight（kg）: |
0.8 |
Output Power: |
15 - 60W |
Output Type: |
Constant Voltage |
Input Voltage: |
AC100-240V, AC100-265V |
Output Frequency: |
50/60Hz |
Output Current: |
5A |
Product Name: |
Led Switch Power Supply 60W Led Driver 12V 5A Constant Voltage |
Specifications: |
K1260CTS 60W DC12V 5A PF:0.9 |
Certificate: |
CCC/TUV-CE/CB |
Input Current: |
AC220V/0.5A |
Input Power: |
68W |
Power Factor: |
>0.9 |
Output Voltage: |
12V |
Output Power: |
60W |
|
Product’s name
|

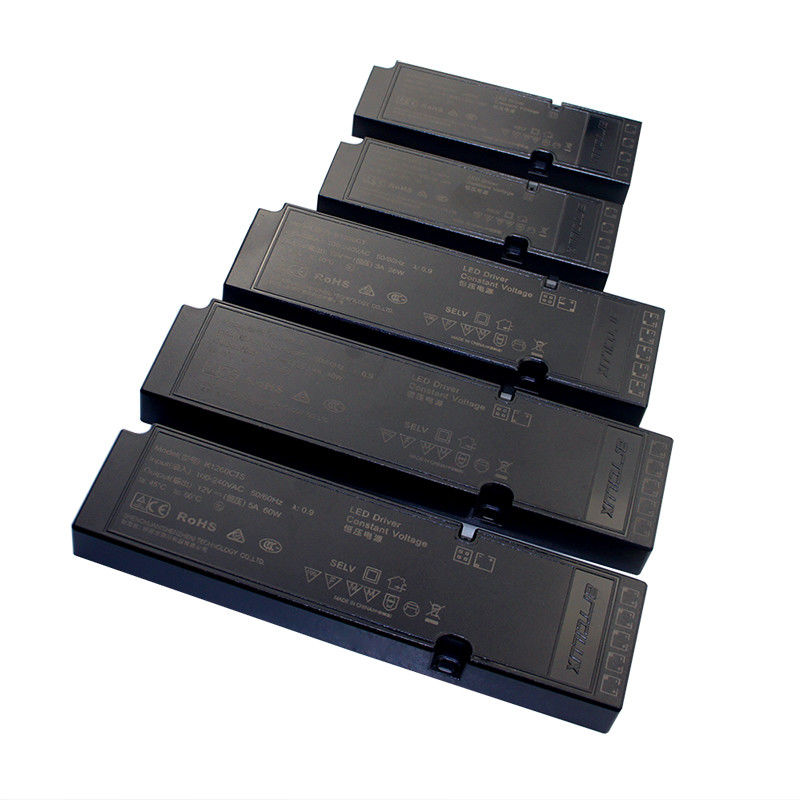

Led Switch Power Supply 60W Led Driver 12V 5A Constant Voltage For Strip Light
|
|
Brand
|
Artcilux
|
|
Specifications
|
K1260CTS 60W DC12V 5A ( Wide voltage) L&S
|
|
Features
|
Ultra Thin Type, Only 22mm Thickness；6 Ways Output Connector
|
|
Size
|
220*60*30mm
|
|
Input voltage
|
AC100‐265V
|
|
Input current
|
AC220V/5A
|
|
Input power
|
60W
|
|
Output voltage
|
12V/24V
|
|
Output current
|
5A
|
|
Output power
|
60W
|
|
Environment temperature
|
‐15～45℃
|
|
Waterproof grade
|
IP20
|
|
Safety standards / EMC
|
EN5022 / EN55015:2013/A1:2015
|
|
Short circuit protection
|
YES
|
|
Open road protection
|
YES
|
Q1. How should we choose Led Switch Power Supply 60W Led Driver 12V 5A Constant Voltage For Strip Light
It is mainly depended on the whole led quantity and wattage. For example, If your wattage up to 54W, it is better to use 60W led
Q2. What Wattage we have for your selection?
Right now, We have 12V DC & 24V DC Series. The watt have 15/18/24/36/48/60W
Q3.What is the warrany of your Led Switch Power Supply?
The warranty is 2 years, This limited warranty does not cover artificial
damage,and normal wear and tear.
Q4: What cerfication do you have for Led Switch Power Supply?
Right now, We have TUV CE/ROHS, CCC and ETL is under the way.
Q5. Can we make our LOGO on Led Switch Power Supply?
YES. But MOQ is 500pcs.
